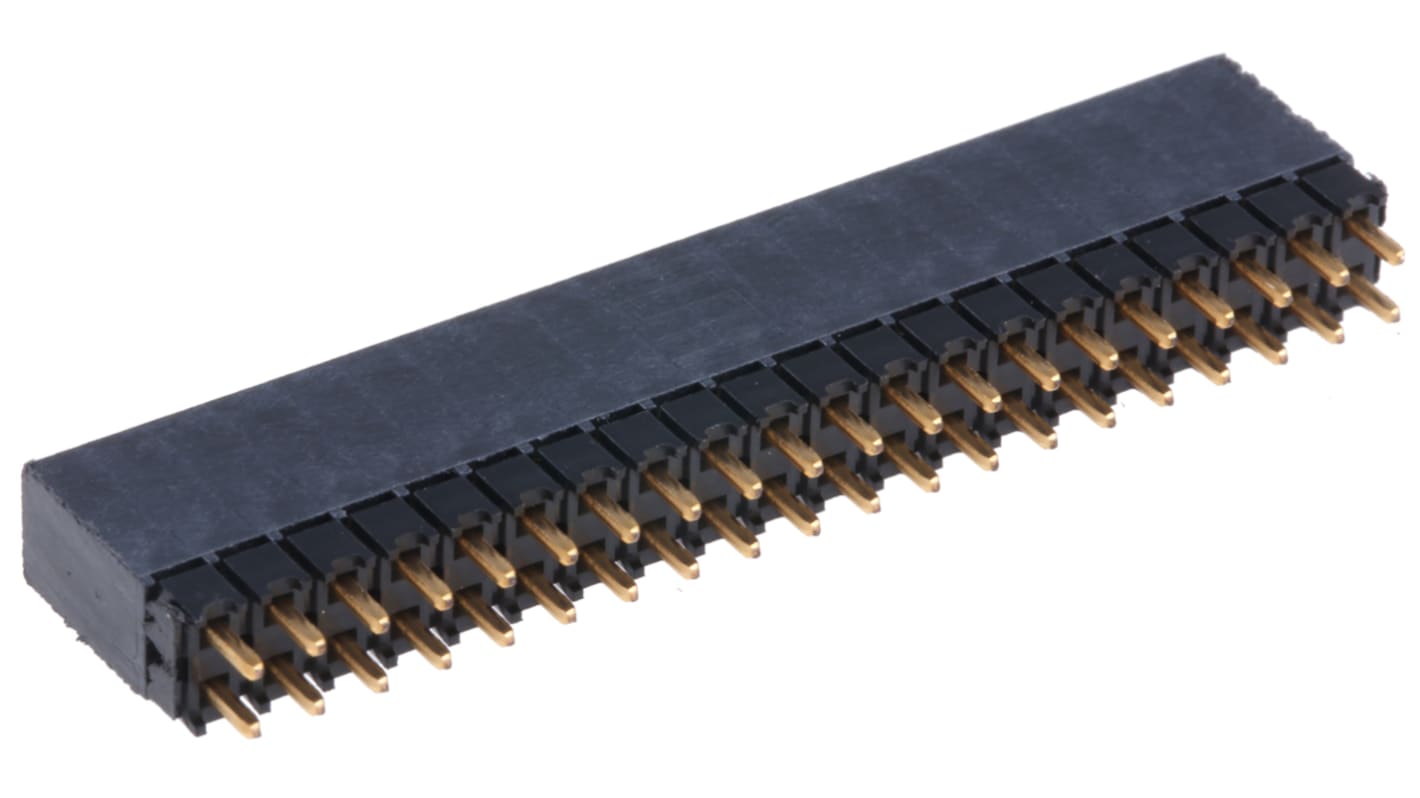

Samtec ESQ Serii Elevated Stackthrough PC/104
W Samtec te gniazda serii ESQ są uniesione w stojakach lub w "nestingu" PC/104 o wysokości 2,54 mm, co zapewnia łatwy i skuteczny sposób na podłączanie wielomodowych połączeń między płytkami. Te dwurzędowe gniazda PC/104 z serii ESQ mają czarne, wypełnione szkłem obudowy poliestrowe, pozłacane styki, kwadratowe ogony i pasują do 0,64 mm kwadratowych styków do zastosowań typu płytka-płytka i są dostępne przy małej lub standardowej sile wkładania i przy różnych stylach odprowadzeń (szczegółowe informacje można znaleźć w arkuszu danych)
Aby uzyskać informacje na temat połączeń, patrz:
Złącza PCB serii DW (zazwyczaj numer seryjny 277-9720)
Złącza PCB serii EW (zazwyczaj numer seryjny 277-9742)
Hedery z serii TSM PCB (zazwyczaj o numerze katalogowym 765-6423)
Złącza PCB z serii TSW (zazwyczaj numer katalogowy 767-0820)
Aby uzyskać informacje na temat połączeń, patrz:
Złącza PCB serii DW (zazwyczaj numer seryjny 277-9720)
Złącza PCB serii EW (zazwyczaj numer seryjny 277-9742)
Hedery z serii TSM PCB (zazwyczaj o numerze katalogowym 765-6423)
Złącza PCB z serii TSW (zazwyczaj numer katalogowy 767-0820)
Samtec ESQ Series PCB Socket, 6.9 A Current Rating, Solder Termination - ESQ12012GD
This reliable pcb socket from Samtec offers high-quality performance and durability. With bronze contacts and a straight orientation, this socket is reliable for a wide range of applications in different industries. Its 40 pin board-to-board design, through hole mounting style, and 2.54 mm pitch make it versatile and efficient for various projects.
Features & Benefits
• The body orientation of the connector is straight for straightforward installation
• Its contact material is bronze, ensuring reliable conductivity in connections
• With a current rating of 6.9A, it accommodates moderate electrical loads effectively
• The mounting style is through hole, providing secure attachment to PCBs
• It features 40 contacts, arranged in 2 rows for versatile connectivity
• The pitch between contacts is 2.54mm, allowing for precise arrangement on PCBs
• It belongs to the ESQ series, ensuring compatibility and consistency in setups
• The termination method is soldering, providing a reliable and permanent connection
• Rated for a voltage of 550V, ensuring safe operation in standard voltage applications
• Its contact material is bronze, ensuring reliable conductivity in connections
• With a current rating of 6.9A, it accommodates moderate electrical loads effectively
• The mounting style is through hole, providing secure attachment to PCBs
• It features 40 contacts, arranged in 2 rows for versatile connectivity
• The pitch between contacts is 2.54mm, allowing for precise arrangement on PCBs
• It belongs to the ESQ series, ensuring compatibility and consistency in setups
• The termination method is soldering, providing a reliable and permanent connection
• Rated for a voltage of 550V, ensuring safe operation in standard voltage applications
Applications
• Self-nesting sockets
• PC/104 J1/P1 "Stackthrough" Connectors
• PC/104 J1 "Non-Stackthrough" Connectors
• PC/104 J2/P2 "Stackthrough" Connectors
• PC/104 J1/P1 "Stackthrough" Connectors
• PC/104 J1 "Non-Stackthrough" Connectors
• PC/104 J2/P2 "Stackthrough" Connectors
Can it handle high currents efficiently?
Yes, with a current rating of 6.9 A, this socket is reliable for high current applications.
Will it work with PC/104 connectors?
Yes, this socket is designed to work seamlessly with PC/104 connectors for added functionality.
Is the voltage rating suitable for industrial applications?
Yes, with a voltage rating of 550 V, this socket is ideal for industrial settings.
.
2,54 mm typu płytka-płytka i przewód-płytka-Samtec
Dane techniczne
Atrybut | Parametr |
---|---|
Liczba styków | 40 |
Liczba rzędów | 2 |
Raster | 2.54mm |
Typ | Płytka - płytka |
Typ montażu | Przewlekany |
Typ obudowy | Kątowe |
Metoda zakończenia | Lutowane |
Układ złączy | Płytka-Płytka |
Prąd znamionowy | 6.9A |
Napięcie znamionowe | 550 V |
Seria | ESQ |
Pokrycie styku | Złoto na niklu |
Materiał styków | Brąz |
