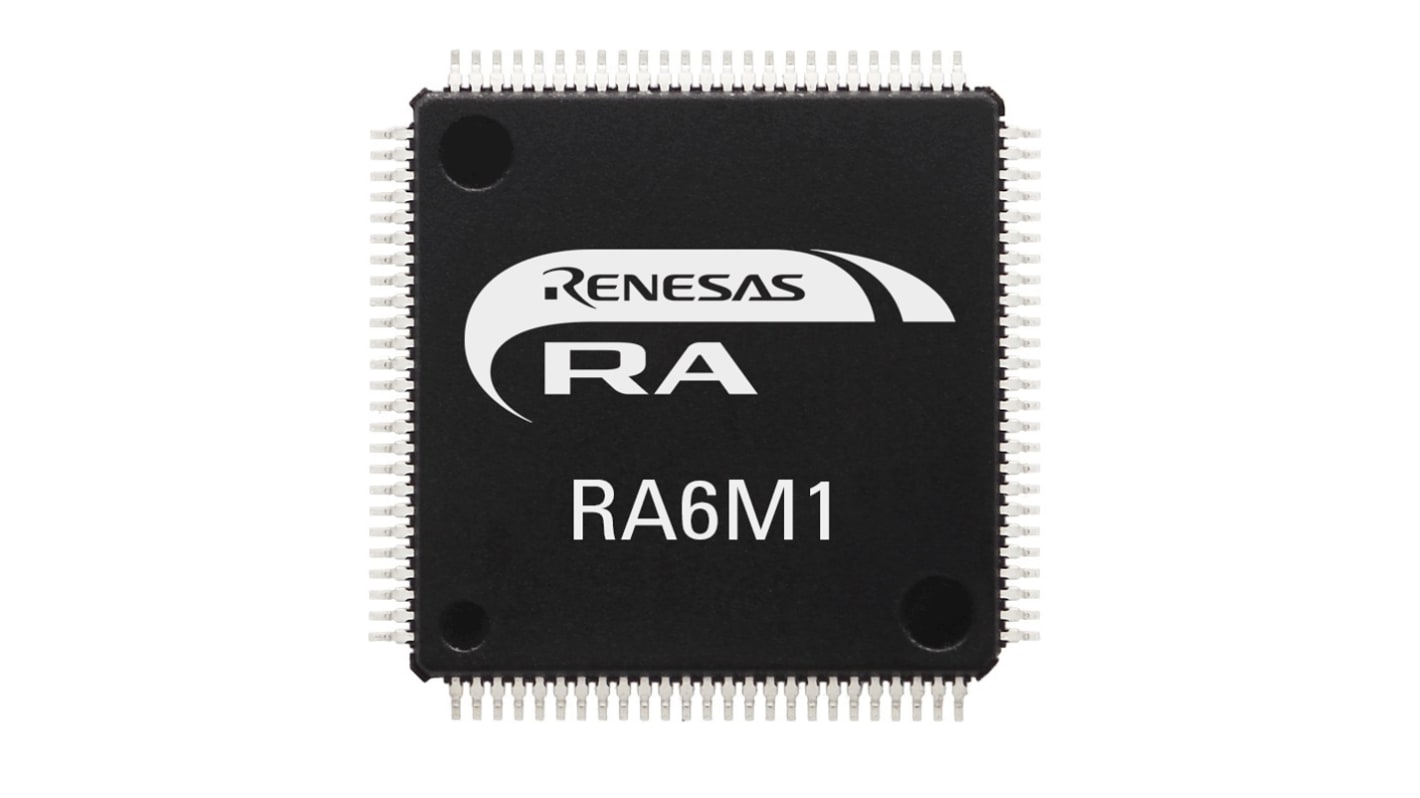

Mikrokontroler Renesas Electronics RA6M1 LQFP 100-pinowy Montaż powierzchniowy ARM Cortex M4 512 kB 32bit CAN:2 120MHz

The Renesas RA6M1 is the entry point to the Renesas RA6 product series for applications that require a high-performance Arm® Cortex®-M4F core at a very attractive price point. The RA6M1 is built on a highly efficient 40nm process and is supported by an open and flexible ecosystem concept—the Flexible Software Package (FSP), built on FreeRTOS—and is expandable to use other RTOSes and middleware. The RA6M1 is suitable for IoT application requiring security, large embedded RAM and low power consumption.

120MHz Arm® Cortex®-M4F
512kB Flash Memory and 256kB SRAM
8kB DataFlash to store data as in EEPROM
Scalable from 64pin to 100pin Packages
Capacitive Touch Sensing Unit
USB2.0 Full Speed
CAN 2.0B
SCI (UART, Simple SPI, Simple I2C)
SPI/ I2C Multimaster Interface
SDHI
SSI/Serial Sound Interface
Applications
Security (Fire Detection, Burglar Detection, Panel control)
Metering (Electricity, Automated Meter Reading)
Industry (Robotics, Door Openers, Sewing Machines, Vending Machines, UPS)
HVAC (Heating, Air Conditioning, Boiler Control)
General purpose
