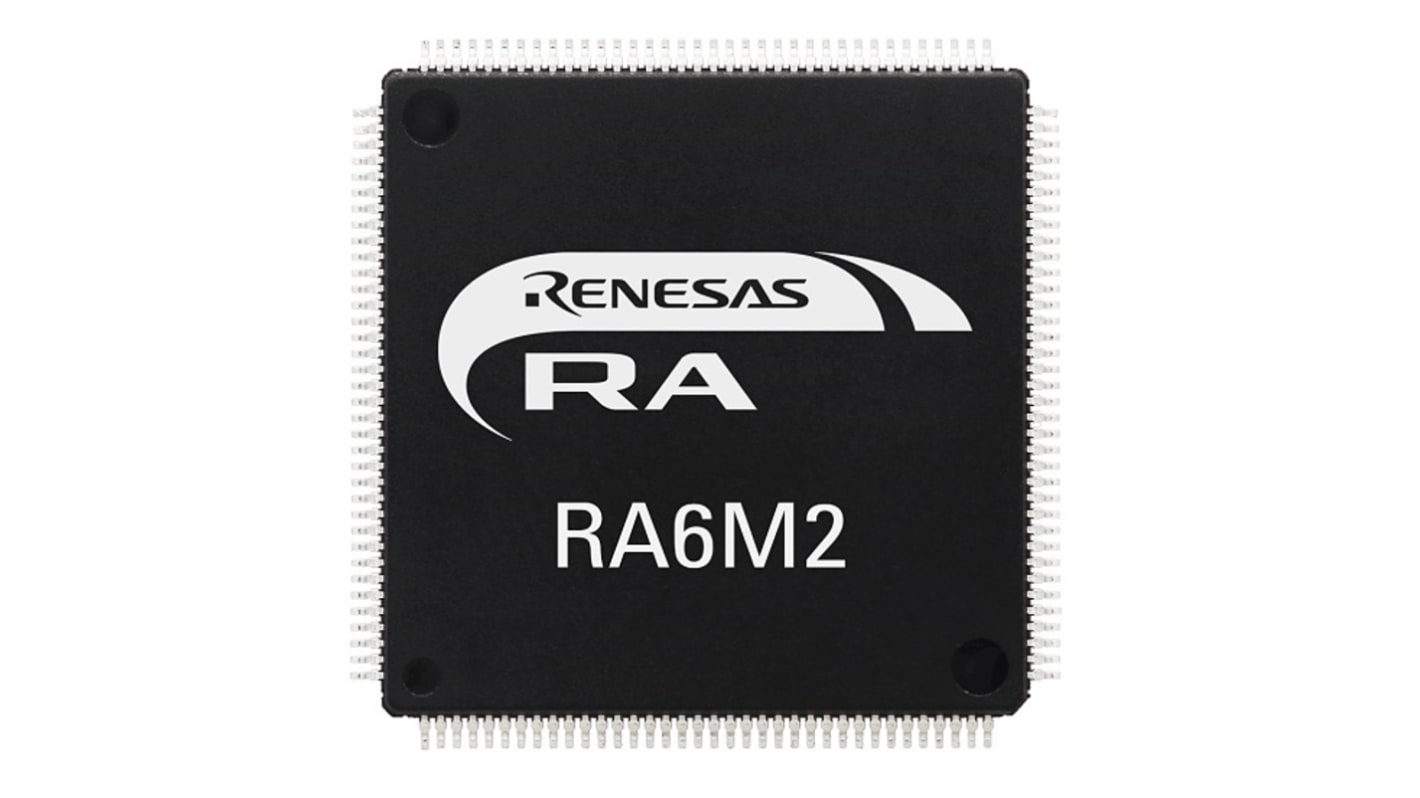

Mikrokontroler Renesas Electronics RA6M2 LQFP 144-pinowy Montaż powierzchniowy ARM Cortex M4 512 kB 32bit CAN:2 120MHz

The Renesas RA6M2 group uses the high-performance Arm® Cortex®-M4F core and offers a building Ethernet MAC with individual DMA, to ensure high data throughput. The RA6M2 is built on a highly efficient 40nm process and is supported by an open and flexible ecosystem concept—the Flexible Software Package (FSP) built on FreeRTOS—and is expandable to use other RTOSes and middleware. The RA6M2 is suitable for IoT application requiring Ethernet, Security, large embedded RAM and low active power consumption.

120MHz Arm® Cortex®-M4F
512kB-1MB Flash Memory and 384kB SRAM
32kB DataFlash to store data as in EEPROM
Scalable from 100pin to 145pin Packages
Ethernet Controller with DMA
Capacitive Touch Sensing Unit
USB2.0 Full Speed
CAN 2.0B
SCI (UART, Simple SPI, Simple I2C)
SPI/ I2C Multimaster Interface
SDHI
Applications
Wired Ethernet Applications
Security (Fire Detection, Burglar Detection, Panel Control
Metering (Electricity, Automated Meter Reading)
Industry (Robotics, Door Openers, Sewing Machines, Vending Machines, UPS)
HVAC (Heating, Air Conditioning, Boiler Control)
General Purpose
